ZHM KL

Gear Flow Meters with Ball Bearing for lubricating and non abrasive fluids

The ZHM KL gear flow meter series (ball bearing design) are flow meters which are mainly used for lubricating liquids. They are equally suitable for higher to low viscosity media.

The ball bearing facilitates a very low starting torque of the measuring element. This way even the lowest flow rates at low viscosities can be accurately measured.

View specification View documents

Functions & Specifications

Measuring Ranges: 0.02 up to 1,000 l/min
Measuring Accuracy: up to ±0.1 %
Repeatability: ±0.05 % (under the same conditions)
Linearity: ±0.5 % of actual flow (viscosity ≥ 30 mm²/s)
Materials: Housing: as per DIN 1.4305 [AISI 303], 1.4404 [AISI 316L]
Gears: as per DIN 1.4122, 1.4501 [AISI F55]
Bearing: Stainless Steel Ball bearing (ZHM 01/2-06/1), Chrome roller bearing (ZHM 06-07)
Seals: FKM, PTFE (others on request)
Pressure: up to 420 bar [6,000 psi]
Medium Temperature: -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request)

Pickups, Amplifiers, Evaluation Electronics and Additional Accessories

Evaluation Electronics

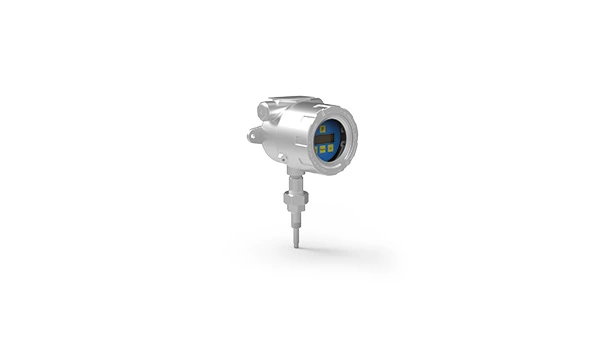

Local Displays (VRGS Ex)

Local Display for Reed Contacts

View specification

Show details

Evaluation Electronics

Local Displays (VTGS Ex)

for wall mount with analog and frequency output

View specification

Show details

Pickups and Amplifiers

ECO Ex Pulse Amplifiers

Single / double tap with different output functions

View specification

Show details

Pickups and Amplifiers

ECO Pulse Amplifiers

Single / double tap with different output functions

View specification

Show details

Evaluation Electronics

Local Displays (VTC/VIC)

with analog and frequency output, temperature measurement

View specification

Show details

Evaluation Electronics

Local Display (FlowPod)

with HART and Exd certification

View specification

Show details

Evaluation Electronics

Intrinsically Safe Supply Unit and separation amplifier (EWS)

to supply intrinsically safe pickups and amplifiers

View specification

Show details

Fibreoptical Amplifier – FOP 70 and OPTV

Pickups and Amplifiers

Fiber Optical Amplifier and Lightpulse Receiver (FOP und OPTV)

for applications in electrostatical painting systems

View specification

Show details

Documents, Manuals & Software

Title	Date	Language	Download
Gear Flow Meters – Datasheet ZHM KL Series	01.01.2022	English (EN)	PDF (2 MB)
Gear Flow Meters – Manual ZHM Series	02.11.2022	English (EN)	PDF (751 KB)
